US EV AC 11KW Charger with LCD SCREEN

  • Model: AC1-US11-BRSW
  • Max. Output Power: 11KW
  • Working Voltage: 220-240VAC
  • Working Current: 50A
  • Charging Display: LCD SCREEN
  • Output Plug: TYPE1
  • Function: Bluetooth RFID Screen Wifi All functions
  • Sample: Support
  • Customization: Support
  • OEM&ODM: Support
  • Product Detail

    Product Tags

    Production Introduction

    This product provides an EV controllable AC power supply. Integrated modular design. With a variety of protection functions, friendly interface, automatic charging control. This product can communicate with the monitoring center or operation management center in real time through RS485, Ethernet, 3G/4G GPRS. You can upload real-time charging status and monitor the real-time connection status of the charging cable. Once disconnected, stop charging immediately to ensure the safety of people and vehicles. This product can be installed in social parking lots, residential areas, supermarkets, roadside parking lots, etc


    Indoor/Outdoor Rated Housing
    Intuitive plug-in charging port
    Interactive touch screen
    RFID authentication interface
    Support 2G/3G/4G, WiFi and Ethernet (optional)
    Advanced, safe and efficient AC charging system
    Back-end data management and metering system (optional)
    Smartphone app for status changes and notifications (optional)


    Model: AC1-US11
    Input Power supply: P+N+PE
    Input voltage: 220-240VAC
    Frequency: 50/60Hz
    Output Voltage: 220-240VAC
    Max current: 50A
    Rated power: 11KW
    Charge plug: Type1
    Cable length: 3/5m(include connector)
    Enclosure: ABS+PC(IMR technology)
    LED indicator: Green/Yellow/Blue/Red
    LCD SCREEN: 4.3'' color LCD(Optional)
    RFID: Non-contact(ISO/IEC 14443 A)
    Start method: QR code/ Card/BLE5.0/P
    Interface: BLE5.0/RS458;Ethernet/4G/WiFi(Optional)
    Protocol: OCPP1.6J/2.0J(Optional)
    Energy Meter: Onboard Metering, Accuracy level 1.0
    Emergency stop: Yes
    RCD: 30mA TypeA+6mA DC
    EMC level: Class B
    Protection grade: IP55 and IK08
    Electrical protection: Over-current,Leakage,Short Circuit,Grounding,Lightning, Under-voltage, Over-voltage and Over-temperature
    Standard: EN/IEC 61851-1, EN/IEC 61851-21-2

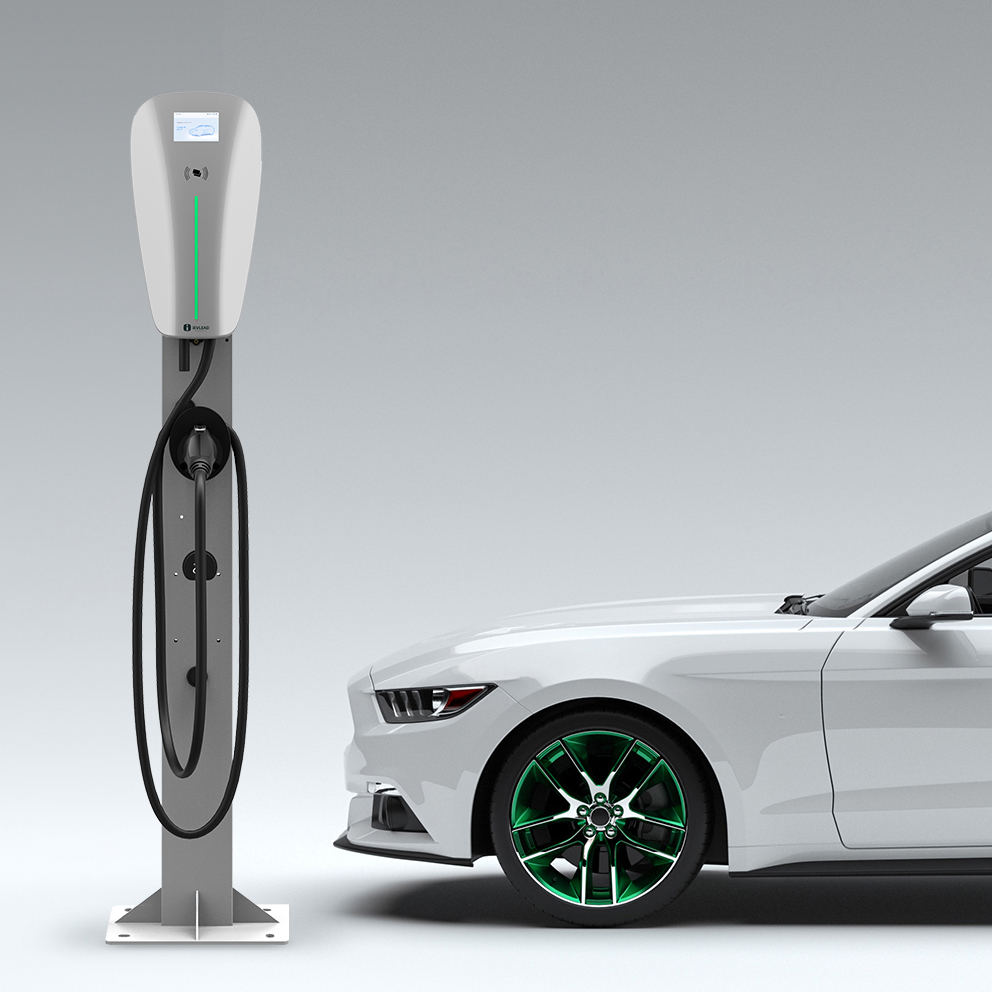

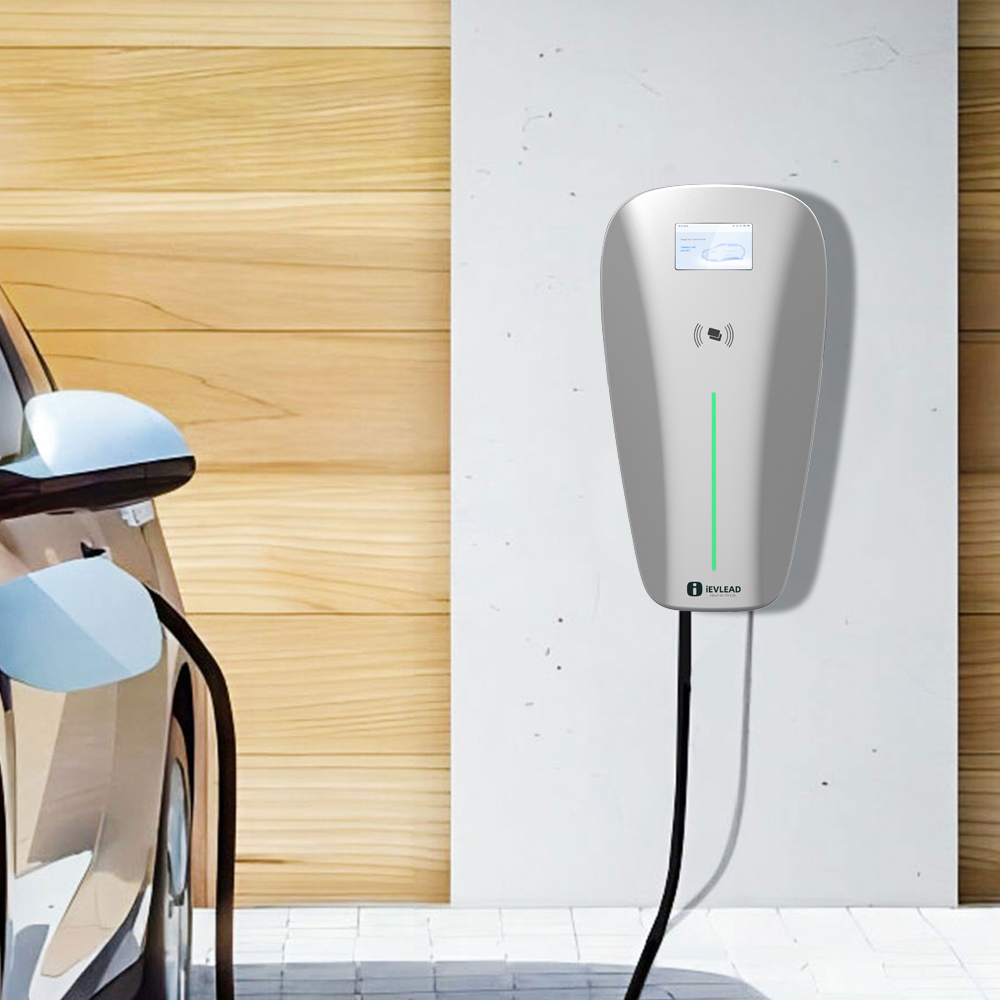

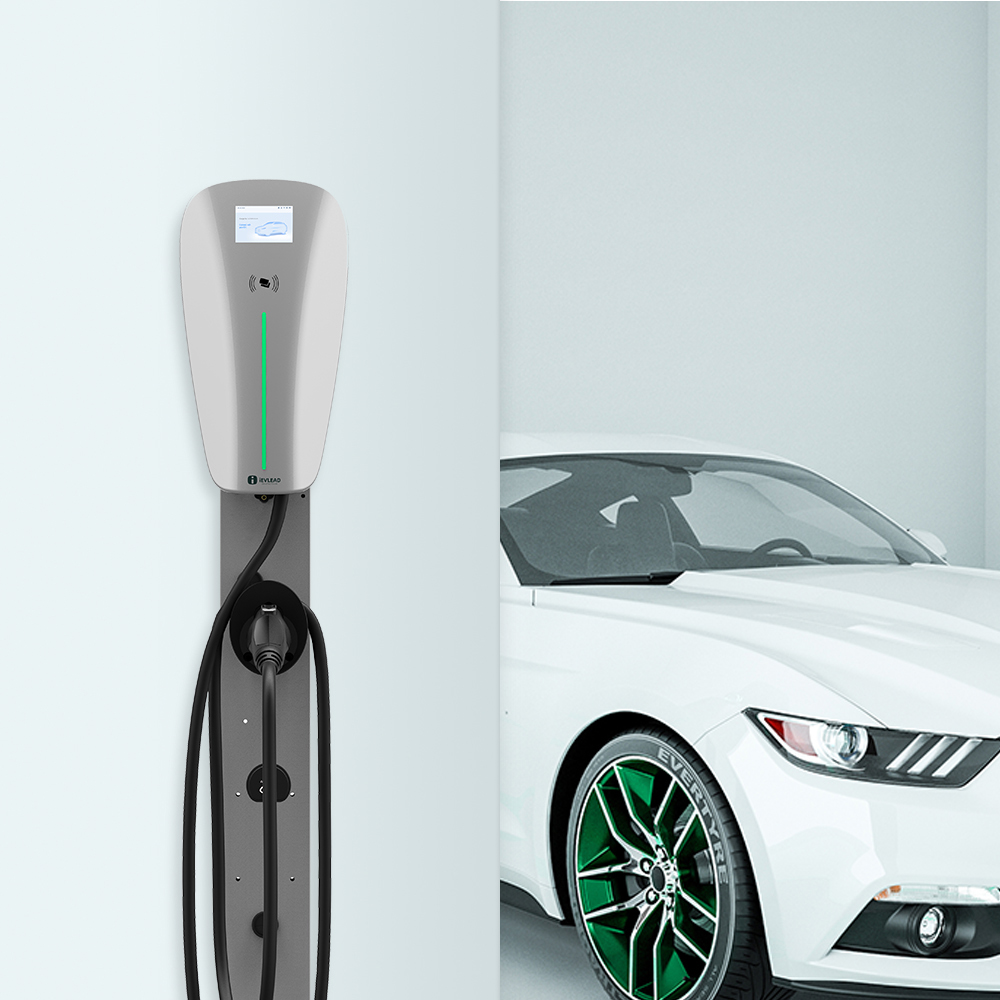

    Installation: Wall mounted/Floor mounted(with column optional)
    Temperature: -25°C~+55°C
    Humidity: 5%-95%(Non-condensation)
    Altitude: ≤2000m
    Product size:218*109*404mm(W*D*H) 218*109*404mm(W*D*H)
    Package size: 517*432*207mm(L*W*H)
    Net weight: 4.5kg




    1.How do you make our business long-term and good relationship?
    A: 1) We keep good quality and competitive price to ensure our customers benefit;
    2)We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

    2.How can we guarantee quality?
    A: Always a pre-production sample before mass production;Always final Inspection before shipment;

    3.Is the AC EV US 11W charger safe to use?
    A.Yes, the AC EV US 11W charger is designed with safety in mind. After rigorous testing, it complies with industry safety standards and provides you with a reliable and safe charging experience.

    4.Can I connect my electric car to the AC EV US 11W charger overnight?
    A: Yes, you can connect your electric car to the AC EV US 11W charger overnight. The charger is designed to automatically stop charging when the battery is fully charged, preventing overcharging.

    5.Is this charger for outdoor use?
    A: Yes, this EV charger is designed for outdoor use with protection level IP55, which is waterproof, dustproof, corrosion resistance, and rust prevention.

    6. Can I use an AC charger to charge my electric car at home?
    A:Yes, most electric car owners use AC chargers to charge their vehicles at home. Ac chargers are usually installed in garages or other designated parking areas for overnight charging. However, the charging speed may vary depending on the power level of the AC charger.

    7. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.

    8.What kinds of payment methods do you accept?
    A: You can make the payment to our bank account or PayPal: 30% T/T deposit and 70% T/T balance the shipment.
