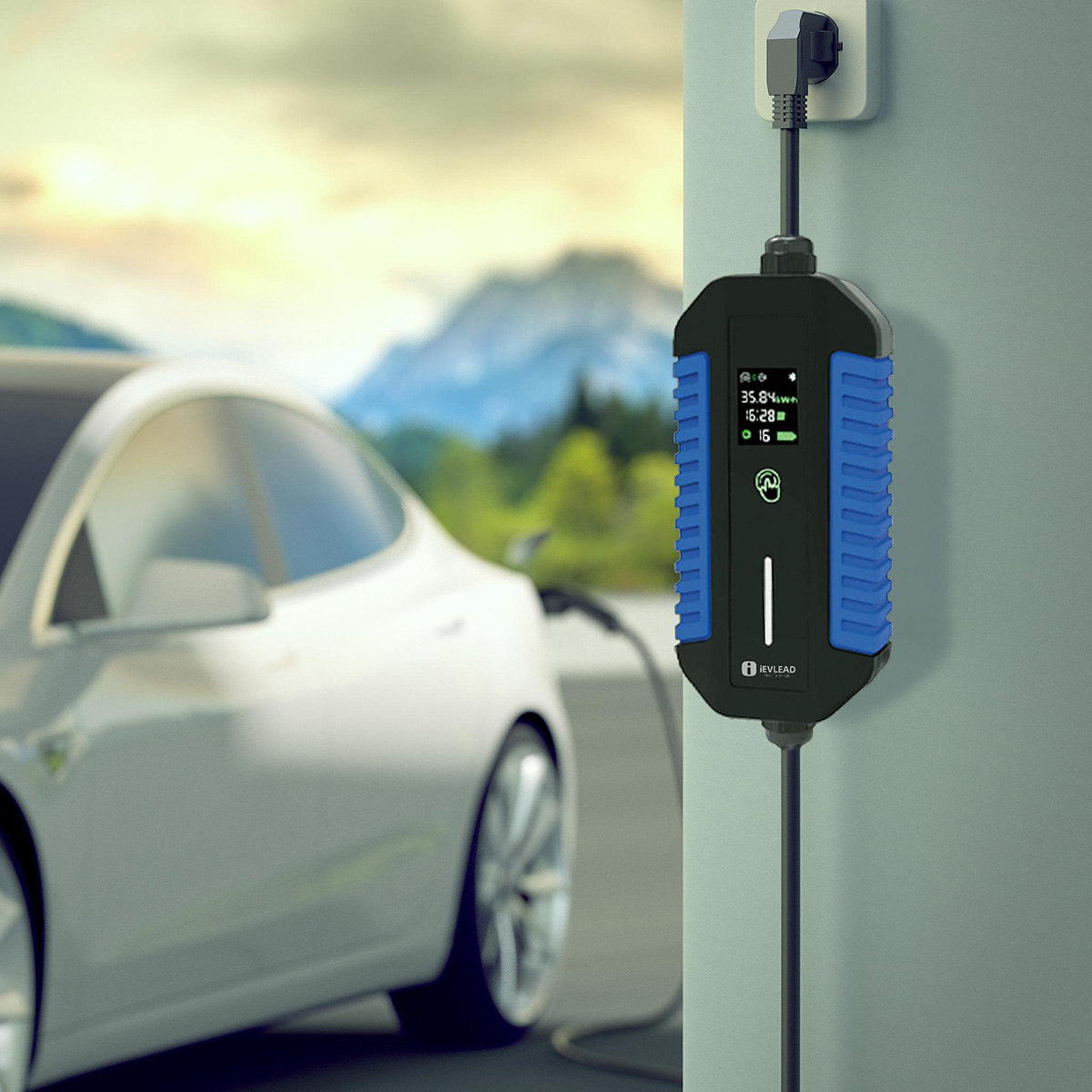

iEVLEAD SAE Level 2 Smart Electric vehicle Portable AC Charger
Production Introduction
iEVLEAD electric vehicle Portable AC Charger is equipped with a highly approved SAE J1772 connector, ensuring compatibility with various EV models.The SAE J1772 connector provides a secure and reliable connection for fast and efficient charging every time.With its Level 2 charging capability, the EVSE Portable AC Charger provides 40A of charging power, ensuring a fast and convenient charging experience for your electric charger. No more long waits at public charging stations and no worries about the range of your electric car. With this portable charger, you can charge your car at home, at work, or anywhere there is a standard electrical outlet. It truly is a game changer for EV owners who value flexibility and convenience.
Features
1: AC 240V level 2
2: CCID20
3: Current 6-40A output adjustable
4: LCD, display of information
5: IP66
6: Touch button
7: Relay welding inspection
8:Scheduled delay to start full power charging
9: Three- color LED indication
10: Internal temperature detection and control
11: Plug side temperature detection and control
12: PE missed alarm
13: NEMA14-50, NEMA 6-50
Specifications
| Working power : | 240V±10%， 60HZ | |||
| Scenes | Indoor / Outdoor | |||
| Altitude (m): | ≤2000 | |||
| Button | Current switching, cycle display, appointment delay rated charging | |||
| Current Switching | The current can be switched between 6-40A by pressing the button. | |||
| Working environment temperature : | -30~50℃ | |||
| Storage temperature: | -40~80℃ | |||
| Leakage Protection | CCID20, AC 25mA | |||
| Temperature check | 1. Input plug cable temperature detection | |||
| 2: Relay or internal temperature detection | ||||
| Protect: | Over-current 1.05ln, over- voltage and under- voltage±15%, over temperature ≥60℃, reduce to 8A to charge, and stop charging when>65℃ | |||
| Ungrounded protection: | Button switch judgment allows ungrounded charging, or PE is not connected fault | |||
| Welding alarm: | Yes, the relay fails after welding and inhibits charging | |||
| Relay control: | Relay open and close | |||
| LED: | Power, charging, fault three-color LED indicator | |||
| Withstand voltage 80-270V | Compatible with American standard voltage 240V | |||
Application
iEVLEAD EV portable AC chargers are for indoor and outdoor, and widely used in USA.
FAQs
1. What is a Level 2 EV charging station?
Level 2 EVSE charging station is a device that provides AC power to charge an electric vehicle at a higher voltage and faster rate than a standard Level 1 charger. It requires a dedicated circuit with higher amperage capacity, and EVs can be charged six times faster than Level 1.
2. What is SAE J 1772?
SAE J 1772 is a standard developed by the Society of Automotive Engineers (SAE) for electric vehicle charging equipment. It specifies the physical and electrical requirements for electric vehicle charging connectors and the communication between the vehicle and the charger.
3. What does 40A mean for an Electric vehicle charging box?
"40A" refers to the maximum rated current or capacity of the electric vehicle charging box. That means the charger is capable of delivering up to 40 amps to an EV to charge its battery. The higher the rated current, the faster the charging speed.
4. What safety features should a Level 2 EV charger have?
Level 2 EV chargers typically have built-in safety features such as ground fault circuit interrupters (GFCIs), overcurrent protection, and thermal protection. These features ensure safe and reliable charging, protecting the vehicle and charging equipment.
5. Can I use a higher power 40A electric vehicle charger?
You can use a higher power 40A electric vehicle charger, but the charging speed will be limited by the maximum rated current of the charger. To take full advantage of the higher power, you'll need an EV charger with a higher rating to handle the increased current.
6. What is your sample policy?
We can supply the sample if We have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
7. What are your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
8. What's the product warranty policy?
All the goods purchased from our company can enjoy one-year free warranty.
