iEVLEAD EU Model3 400V EV Charging Station Charges


  • Model: AD1-EU22
  • Max. Output Power: 22KW
  • Working Voltage: 400 V AC Three phase
  • Working Current: 32A
  • Display Screen: 3.8-inch LCD screen
  • Output Plug: IEC 62196, Type 2
  • Input Plug: NONE
  • Function: Smart phone APP Control, Tap card control, Plug-and-charge
  • Installation: Wall-mount/Pile-mount
  • Cable Length: 5m
  • Sample: Support
  • Customization: Support
  • OEM/ODM: Support
  • Certificate: CE
  • IP Grade: IP55
  • Warranty: 2 years
  • Product Detail

    Product Tags

    Production Introduction

    EVC10 commercial electric vehicle (EV) charging stations are designed using cutting-edge hardware technology to be safe and reliable, while offering drivers a user-friendly, premium charging experience. We rigorously test all our products to ensure they are rugged and built to withstand the elements.

    Features

    With "Plug and Charge" technology, it simplifies the charging process.
    5M Long Cable for Convenient Charging.
    Ultra compact and sleek design, saving valuable space.
    Larger LCD Screen Display.

    Specifications

    iEVLEAD EU Model3 400V EV Charging Station Charges
    Model No.: AD1-E22 Bluetooth Optional Certification CE
    AC Power Supply 3P+N+PE WI-FI Optional Warranty 2 years
    Power Supply 22kW 3G/4G Optional Installation Wall-mount/Pile-mount
    Rated Input Voltage 230V AC LAN Optional Work Temperature -30℃~+50℃
    Rated Input Current 32A OCPP OCPP1.6J Storage Temperature -40℃~+75℃
    Frequency 50/60Hz Energy Meter MID Certified(optional) Work Altitude <2000m
    Rated Output Voltage 230V AC RCD Type A+DC6mA (TUV RCD+RCCB) Product Dimension 455*260*150mm
    Rated Power 22KW Ingress Protection IP55 Gross Weight 2.4kg
    Standby Power <4W Vibration 0.5G, No acute vibration and impation
    Charge Connector Type 2 Electrical Protection Over current protection ,
    Display Screen 3.8 inch LCD Screen Residual current protection,
    Cable Legth 5m Ground protection,
    Relative humidity 95%RH, No water droplet condensation Surge protection,
    Start Mode Plug&Play/RFID card/APP Over/Under Voltage protection,
    Emergency Stop NO Over/Under temperature protection

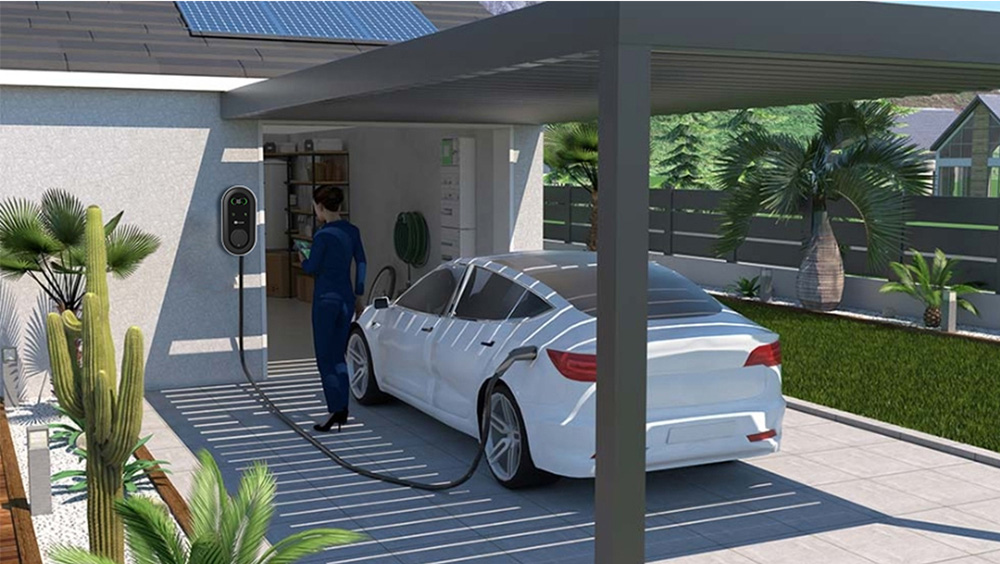

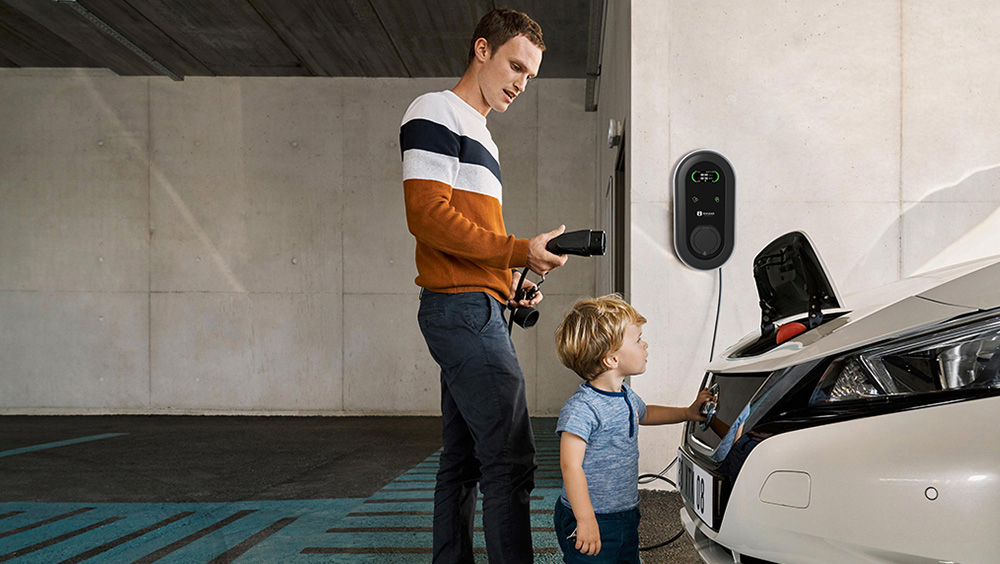

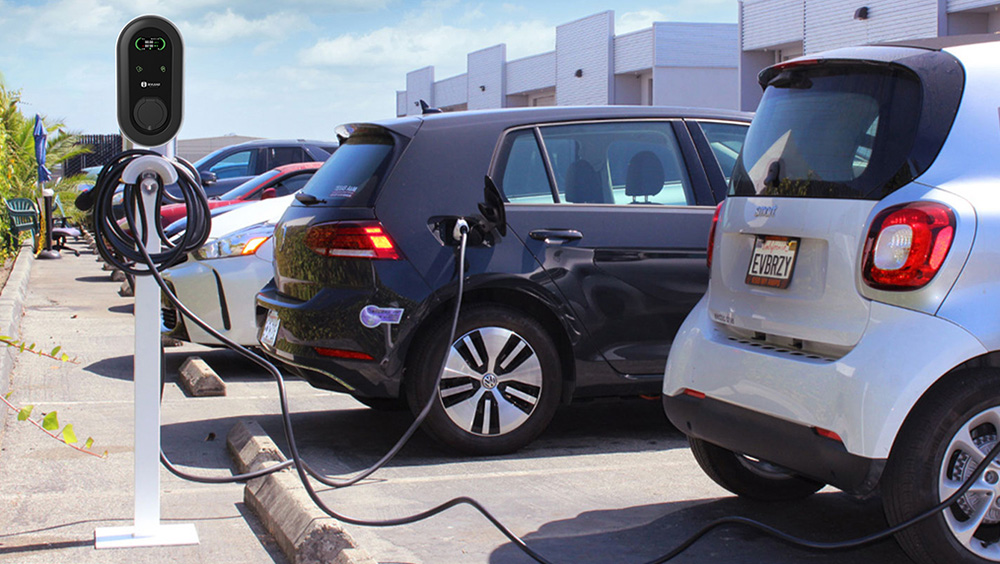

    Application

    ap01
    ap02
    ap03

    FAQs

    Q1: What are your shipping conditions?
    A: By express, air and sea. The customer can choose anyone accordingly.

    Q2: How to order your products?
    A: When you are ready to order, please contact us to confirm the current price, payment arrangement and delivery time.

    Q3: What is your sample policy?
    We can supply the sample if We have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q4: Can I share my Smart Home EV charger with other people?
    A: Yes, some smart residential EV chargers have features that allow you to share the charger with other people. This is great for multi-car households or when hosting guests with electric vehicles. The sharing feature generally allows you to set user permissions and monitor individual charging sessions.

    Q5: Are smart residential EV chargers backward compatible with older EV models?
    A: Smart residential EV chargers are generally compatible with both older and newer EV models, regardless of release year. As long as your EV uses a standard charging connector, it can be charged with a smart residential EV charger regardless of its age.

    Q6: Can I control and monitor the charging process remotely?
    A: Yes, most smart residential EV chargers come with a mobile app or web portal that allows you to remotely control and monitor the charging process. You can start or stop charging, schedule charging sessions, monitor energy usage, and receive notifications or alerts about charging status.

    Q7: How long does it take to charge an EV using a smart residential EV charger?
    A: Charging time depends on the battery capacity of the EV, the charging rate of the charger and the state of charge. On average, a smart residential EV charger can take an EV from empty to full in about 4 to 8 hours, depending on these factors.

    Q8: What are the maintenance requirements for smart household electric vehicle charging piles?
    A: Smart residential EV chargers typically require minimal maintenance. Regular cleaning of the exterior of the charger and keeping the charging connector clean and free of debris is recommended. It is also important to follow any specific maintenance instructions provided by the manufacturer.
