iEVLEAD 7KW 230V Type 2 EVSE Portable AC Charging Box


  • Model: PD3-EU7
  • Max.Output Power: 7KW
  • Working Voltage: 230V±10%
  • Working Current: 6A, 8A,10A, 13A, 16A, 20A, 24A, 32A
  • Charging Display: LCD + LED light indicator
  • Output Plug: Type 2
  • Function: Plug & Charge
  • Sample: Support
  • Customization: Support
  • OEM/ODM: Support
  • Certificate: CE, TUV
  • IP Grade: IP66
  • Warranty: 2 years
  • Product Detail

    Product Tags

    Production Introduction

    The iEVLEAD Electric Vehicle Portable AC Charger is a compact charging device that allows you to charge your electric vehicle anytime, anywhere. Suitable for indoor or outdoor use, this EVSE charger is a single-phase mode 2 portable AC charger, which can meet 13A single-phase AC charging, and the current can be switched between 6A, 8A, 10A, 13A,16A, 20A,24A,32A. With its plug-and-play feature, you can easily discharge your electric car by connecting it to the charger and start charging immediately. iEVLEAD electric vehicle charger has IP66 waterproof function, this electric vehicle charging cable can be used in the temperature range of -25°C to 50°C. Regardless of thunderstorms, high temperatures, or snowfall, you can safely charge your vehicle without any worries.

    Features

    1: Easy to operate, plug & play.
    2: Single-phase mode 2
    3: TUV certification
    4: Scheduled & delayed charging
    5: Leakage Protection: Type A (AC 30mA) + DC6mA
    6: IP66

    7: Current 6-16A output adjustable
    8: Relay welding inspection
    9: LCD +LED indicator
    10: Internal temperature detection and protection
    11: Touch button, current switching, cycle display, appointment delay rated charging
    12: PE missed alarm

    Specifications

    Working power : 230V±10%, 50HZ±2%
    Scenes Indoor/Outdoor
    Altitude (m): ≤2000
    Current Switching It can meet 32A single-phase AC charging, and the current can be switched between 6A, 10A, 13A, 16A, 20A, 24A, 32A
    Working environment temperature :  -25~50℃
    Storage temperature:  -40~80℃
    Environment humidity: < 93 <>%RH±3%RH
    External magnetic field: Earth’s magnetic field, Not exceeding fivetimes the earth’s magnetic field in any direction
    Sinusoidal wave distortion: Not exceeding 5%
    Protect: Over-current 1.125ln, over- voltage and under- voltage±15%, over temperature ≥70℃, reduce to 6A to charge, and stop charging when>75℃
    Temperature check 1. Input plug cable temperature detection.                 2. Relay or internal temperature detection.
    Ungrounded protection: Button switch judgment allows ungrounded charging, or PE is not connected fault
    Welding alarm: Yes, the relay fails after welding and inhibits charging
    Relay control: Relay open and close
    LED: Power, charging, fault three-color LED indicator

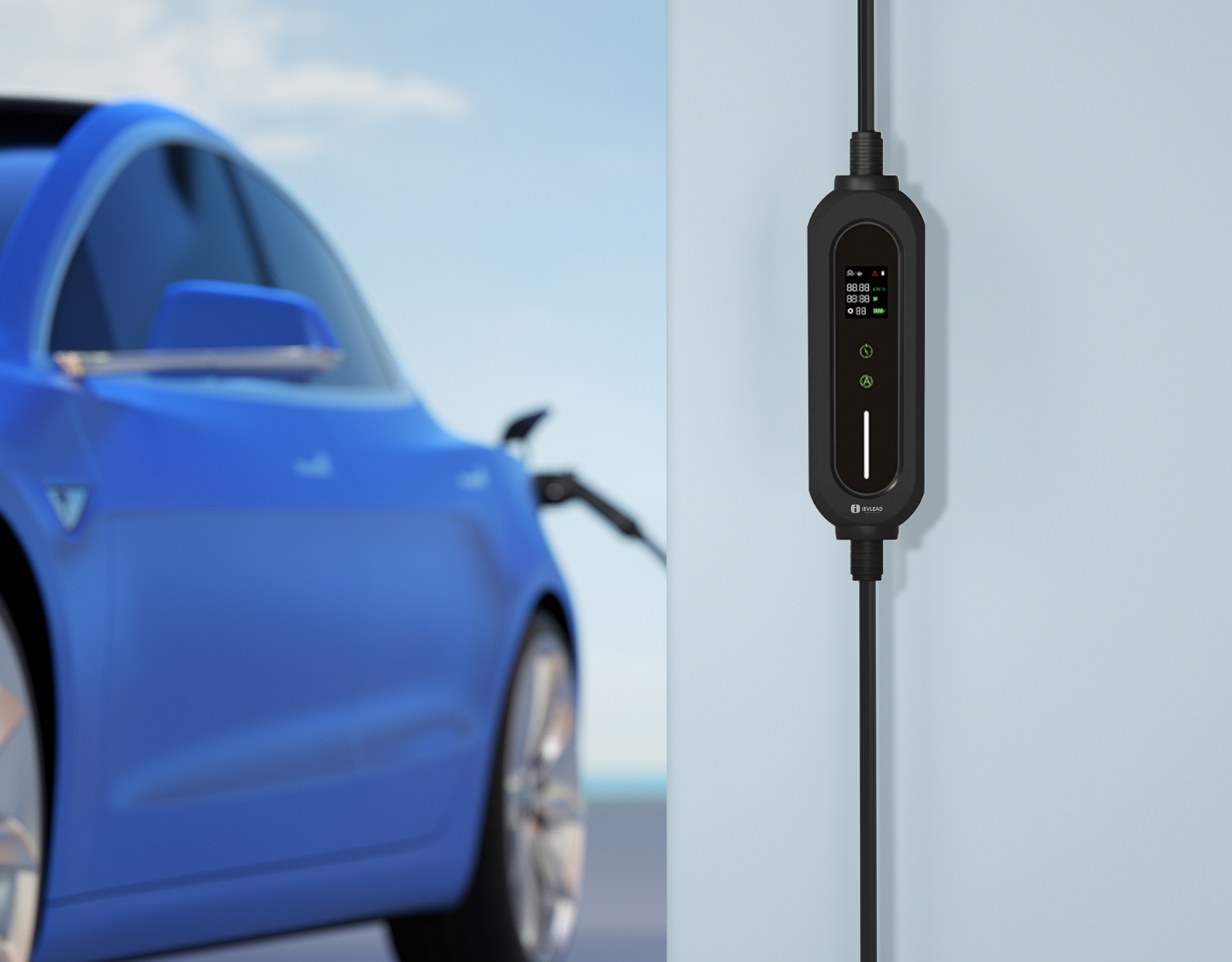

    Application

    iEVLEAD EV portable AC chargers are for indoor and outdoor, and widely used in EU.

    1f14ceda-69fc-4b29-a8f3-06f9b84bf262

    FAQs

    1. What is the EVSE Portable AC Charging box?

    The EVSE Portable AC Charging box is a portable electric vehicle charging station that provides a convenient and reliable way to charge your electric vehicle. It is specifically designed for a 7KW power rating, operates on 230V, and is IP66 rated for protection against dust and water.

     2. Can I use the EV Portable AC Charger with any electric vehicle?

    The EVSE Portable AC Charger is designed to work with most electric vehicles that can be charged using a Type 2 connector. However, it is always recommended that you consult the vehicle manufacturer's specifications to ensure compatibility.

     3. Is the iEVLEAD eletric vehicle portable AC charger suitable for outdoor use?

    Yes, this iEVLEAD Portable AC Charger is IP66 rated, which means it is highly dust and water resistant. This makes it suitable for both indoor and outdoor use, giving you the flexibility to charge your EV wherever you need it.

     4. Can the EV portable AC charger be used with a generator?

    Yes, you can use the EV Portable AC Charger with a generator as long as the generator can provide the voltage and current required by the charger. However, refer to your charger's owner's manual or consult the manufacturer for specific guidelines and recommendations.

     5. Is there a warranty for the iEVLEAD Portable AC Charging box?

    Yes, iEVLEAD portable AC charging boxes usually come with a manufacturer's warranty. Warranty periods may vary, so it is advisable to check product documentation or contact the manufacturer for detailed warranty information.

     6. What is the lead time for OEM and customized EV chargers?

    The lead time for OEM and customized EV chargers depends on the specific requirements and order quantity. We will provide an estimated lead time upon request.

    7. Do you offer installation services for your EV chargers?

    We do not offer installation services for our EV chargers, but we can provide assistance and guidance for installation. We recommend hiring a licensed electrician for installation.

    8. When will my order be shipped?

    Normally 30-45 days after payment, but it varies depending on quantity.
