iEVLEAD 3.0KW 230V IP66 EV Portable AC Charger

  • iEVLEAD 3.0KW 230V IP66 EV Portable AC Charger

  • Model: PD1-EU3
  • Max.Output Power: 3.0KW
  • Working Voltage: 230V±10%
  • Working Current: 6A, 8A,10A, 13A
  • Charging Display: LCD + LED light indicator
  • Output Plug: Type 2
  • Function: Plug & Charge
  • Sample: Support
  • Customization: Support
  • OEM/ODM: Support
  • Certificate: CE, TUV
  • IP Grade: IP66
  • Warranty: 2 years

    • Product Detail

    Product Tags

    Production Introduction

    iEVLEAD EV Portable AC Charger is a lightweight and compact charging device that allows you to charge your EV anytime, anywhere.This EVSE charger for indoor or outdoor use, is a single- phase mode 2 portable AC charger, it can meet 13A single-phase AC charging, and the current can be switched between 6A,8A,10A,13A. With its plug-and-play functionality, you can easily connect your electric car to the charger and start charging immediately. iEVLEAD EV Charger with IP66 waterproof and dustproof,this EV charging cable can be used from -25°C to 50°C. Whether it's thunderstorms, high temperatures,or snowfall, you can charge your vehicle securely without any worries.

    Features

    1: Easy to operate, plug & play.
    2: Single-phase mode 2
    3: TUV certification
    4: Scheduled & delayed charging
    5: Leakage Protection: Type A (AC 30mA) + DC6mA
    6: IP66

    7: Current 6-13A output adjustable
    8: Relay welding inspection
    9: LCD +LED indicator
    10: Internal temperature detection and protection
    11: Touch button, current switching, cycle display, appointment delay rated charging
    12: PE missed alarm

    Specifications

    Working power : 230V±10%， 50HZ±2%
    Scenes Indoor/Outdoor
    Altitude (m): ≤2000
    Current Switching It can meet 13A single-phase AC charging, and the current can be switched between 6A, 8A,10A, 13A
    Working environment temperature :  -25~50℃
    Storage temperature:  -40~80℃
    Environment humidity: < 93 <>%RH±3%RH
    External magnetic field: Earth’s magnetic field, Not exceeding fivetimes the earth’s magnetic field in any direction
    Sinusoidal wave distortion: Not exceeding 5%
    Protect: Over-current 1.125ln, over- voltage and under- voltage±15%, over temperature ≥70℃, reduce to 6A to charge, and stop charging when>75℃
    Temperature check 1. Input plug cable temperature detection.                 2. Relay or internal temperature detection.
    Ungrounded protection: Button switch judgment allows ungrounded charging, or PE is not connected fault
    Welding alarm: Yes, the relay fails after welding and inhibits charging
    Relay control: Relay open and close
    LED: Power, charging, fault three-color LED indicator

    Application

    iEVLEAD EV portable AC chargers are for indoor and outdoor, and widely used in EU.

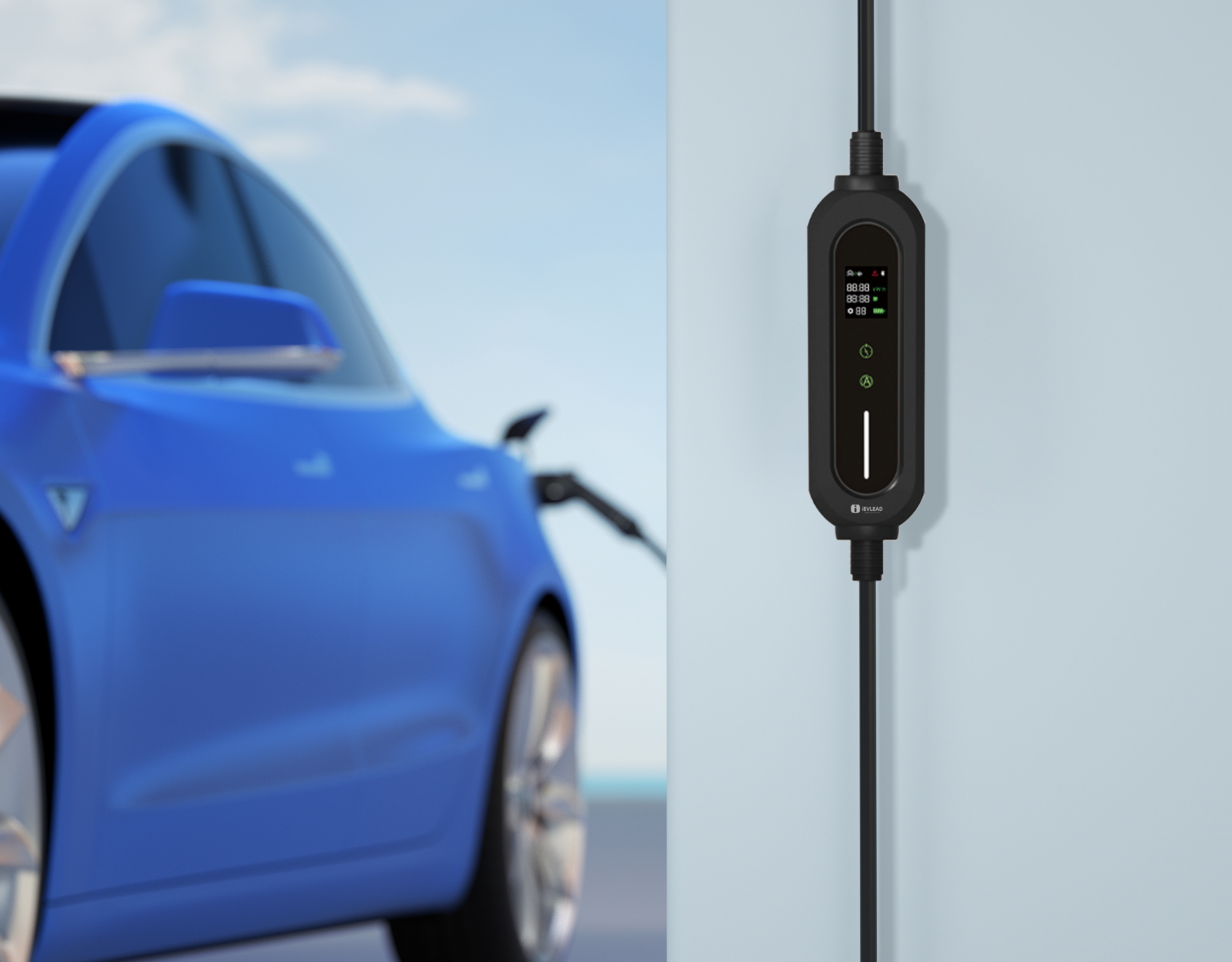

    3.5KW EVSE Portable AC Charger

    FAQs

    1. Can I use the IP66 rated electric car portable AC charger outdoors?

    Yes, the IP66 rated EV Portable AC Charger is designed to withstand outdoor conditions including exposure to water and dust. However, it is important to ensure that the charger is properly installed and protected from extreme weather conditions.

    2. How fast can the EV Portable AC Charging box charge my vehicle?

    The charging speed of an EV portable AC charging box depends on several factors, including the input power, the capacity of the charger, and the capacity of the EV battery. Generally speaking, it takes several hours to fully charge an electric car using a portable AC charger.

    3. What is the significance of IP66 protection level for electric vehicle portable AC chargers?

    The IP66 rating is a classification that indicates that electric vehicle portable AC chargers are highly resistant to dust and water. This makes it suitable for both indoor and outdoor use, ensuring its durability and safe operation in a variety of environments.

     4. Can I install the EV Portable AC Charger myself?

    While some portable AC chargers can be easily installed by vehicle owners, it is always recommended to consult a professional electrician or follow the manufacturer's guidelines for proper installation. This ensures the safe and proper functioning of the charger.

     5. How to maintain the electric car portable AC charger?

    To maintain your EV portable AC charger, it is recommended to keep it clean and free from dust and debris. Regularly inspect cables and connectors for signs of wear or damage. It is also recommended to perform any firmware updates or maintenance recommended by the manufacturer to ensure optimal performance.

     6. How do you guarantee the quality?

    We have 100% test before delivery, the warranty time is 2 years.

    7. What is the warranty period for your EV chargers?

    Our EV chargers come with a standard warranty period of 2 years. We also offer extended warranty options for our customers.

    8. Can you customize EV chargers according to our specific requirements?

    Yes, we offer customization services for our EV chargers to meet specific requirements.
